Polaris™ Single Phase Smart Prepaid Energy Meter delivers industry-leading smart metering capabilities with field-swappable RF, Cellular, or WiFi communication options, supported by our comprehensive software suite for enhanced energy management and distribution.
SMART Meters.SMART Future.

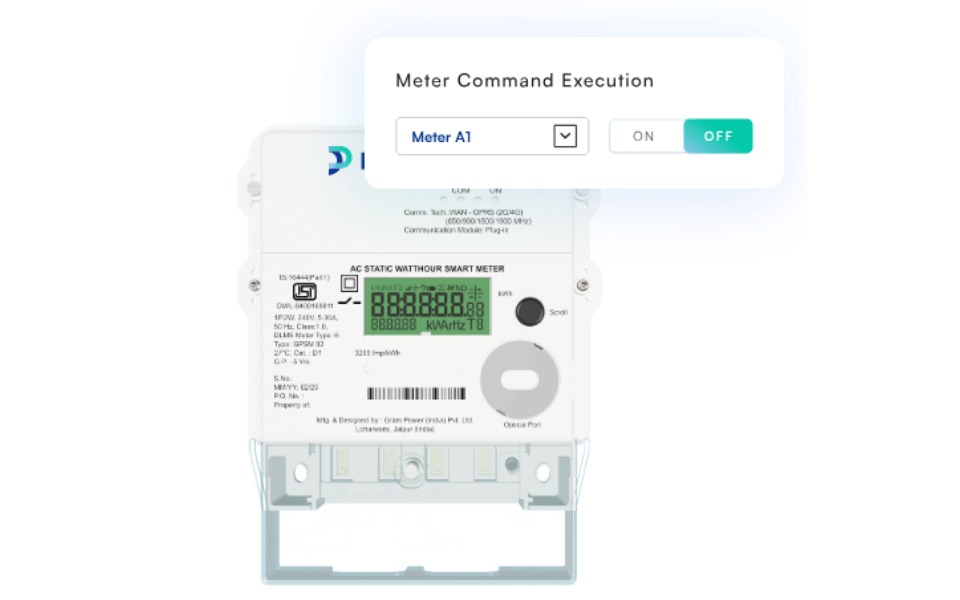

The integrated prepaid module can be used in association with the meter data management system to make revenue collections smoother, faster, smarter.
SMART Systems. SMART Spaces.

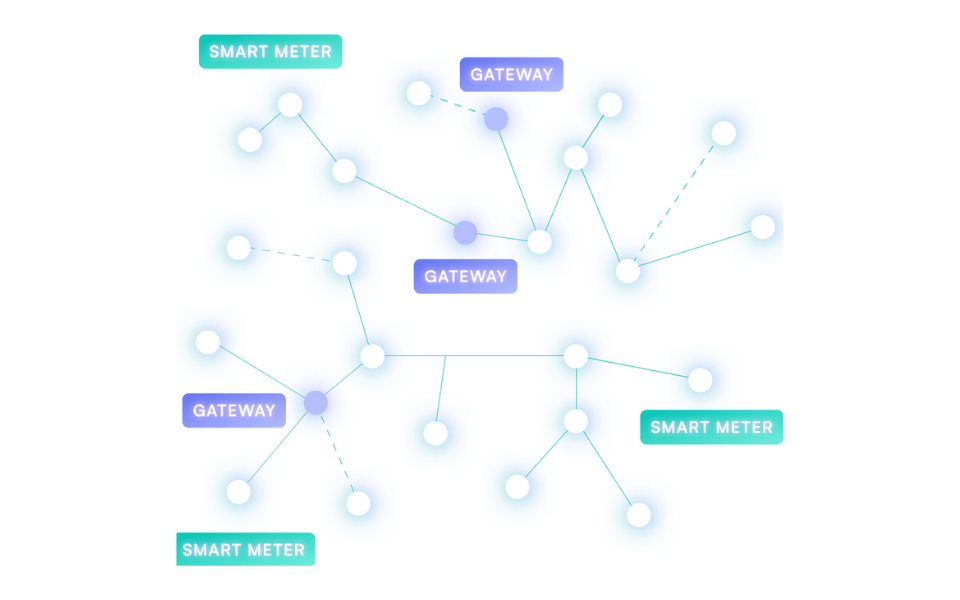

The Polaris smart meters can communicate with DCU directly or indirectly through other meters in case of low network coverage using Wirepas technology.
SMART Solutions. SMART
Business.
Measuring, collecting, analysing energy usage with unparalleled end-to-end visibility and control with the comprehensive software platform- Avdhaan.
SMART Systems. SMART Spaces.
| Connection | 1 Phase 2 Wire |
| Accuracy | Class 1.0 |
| Rated Voltage | 240V (phase to neutral) |
| Voltage Variation | (-) 30% to (+) 20 % |
| Current Range | 5-60 A/ 5-30A |
| Frequency | 50 Hz |
| Frequency Variation | (-)5% - 47.5 Hz to (+)5% - 52.5 Hz |
| Power factor | Zero-Lag-Unity-Lead-Zero |
| Power Consumption | As per IS 16444 |
| Switch Category | UC1 |
| NAN | RF 865-868 MHz |
| WAN | Cellular 850/900/1800/1900/ 2100/2300/2500 MHz |
| Protocol | DLMS as per IS16444/ IS 15959 Part2 |
| Type of Display | STN-LCD with Backlight |
| Character size of display digits | 10 mm |
| No. of display digits for data | 8 digits |
| No. of display digits for parameter identification | LCD Icon Available |
| Life of display unit | 10 years |
| Indication of healthiness of potential & current | LCD Icon Available |
| Provision of Latching Relay connection / disconnection status | LCD Icon Available for disconnection |
| Data Downloading | RF/Cellular communication provided to download all data of load survey, MD and billing |
| Load profile recording | kWh and MD (kW) every 30 minute interval up to 6 months |
| Non-volatile memory | Minimum 10 years (Retention time in absence of power) |
| Ingress Protection Code | IP-54 |
| Operating Temp. | (-)10°C to +60°C |
| Storage Temp. | (-)25°C to +70°C |
| Relative Humidity | Up to 95% non-condensing |
| Length×Width×Depth | 198×156×76 mm (approx.) |
| Weight | 0.746 Kg ±0.2 Kg |
| Sealing | Provision on communication module, meter cover, optical port, terminal cover Break to open meter |
| BIS Certified |
| ISO 9001 : 2015 |
| CMMI Level 3 |
| NABL Accredited lab |
| IS : 13779 |
| IS : 15959 (Part 1 & Part 2) |
| IS : 16444 |
